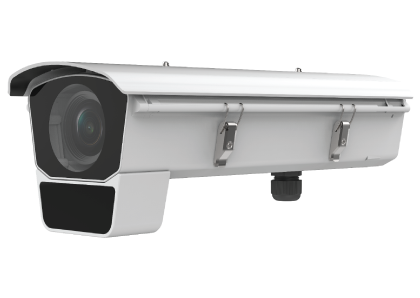

iDS-2CD7046G0/E-IHSY(/F11)(R)

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to 140 WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP66) and vandal proof (IK10)

Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Blue glass module to reduce ghost phenomenon

Lens
Focal Length & FOV: 3.8 to 16 mm, horizontal FOV: 109.1° to 29.6°, vertical FOV: 61.3° to 16.8°, diagonal FOV: 125.1° to 33.9°
11 to 40 mm, horizontal FOV: 39.1° to 12.1°, vertical FOV: 21.4° to 6.8°, diagonal FOV: 45.8° to 13.9°
Lens Mount: CS mount
Focus:Manual
Iris Type: P-iris
Aperture: 3.8 to 16 mm: F1.4
11 to 40 mm: constant F1.4 throughout the zoom range
