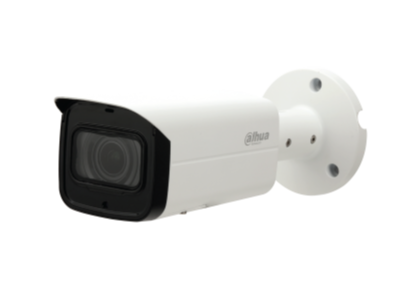

IPC-HFW4831T-ASE

  • 1/2.5” 8Megapixel progressive scan STARVISTM CMOS
  • H. 265&H.264 triple-stream encoding
  • 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens (4mm optional)
  • Max. IR LEDs Length 80m
  • Micro SD Memory,IP67, IK10, PoE

Image Sensor

1/2.5” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H)x2160(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.06Lux/F1.6( Color,1/3s,30IRE)

0.3Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 80m (262ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (4mm optional)

Max. Aperture

F1.6 (F1.6)

Angle of View

H:112° (88°), V:69° (48°)

Focus Control

Fixed

Close Focus Distance

0.9m(1.7m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

69m(226ft)

28m(92ft)

14m(46ft)

7m(23ft)

4mm

89m(292ft)

36m(118ft)

18m(59ft)

9m(30ft)
